A diesel engine rebuild kit is a comprehensive package of critical internal components designed to restore your engine's mechanical integrity and sealing performance during an overhaul. Technicians and truck owners working on heavy equipment need to know exactly what these kits contain before ordering parts or planning labor. The core components in any diesel engine rebuild kit include pistons, piston rings, cylinder liners, main bearings, rod bearings, and a full set of gaskets and seals. Kit scope varies significantly between in-frame and out-of-frame configurations, and choosing the wrong type can leave you hunting for missing seals mid-teardown. Nationwideheavytruckparts stocks rebuild kits for major diesel platforms used across commercial trucking.
What does a rebuild kit include for diesel engines?
A standard diesel engine rebuild kit covers every major wear surface inside the engine. The goal is to replace all components that degrade together during normal operation, so the engine returns to factory performance after reassembly.

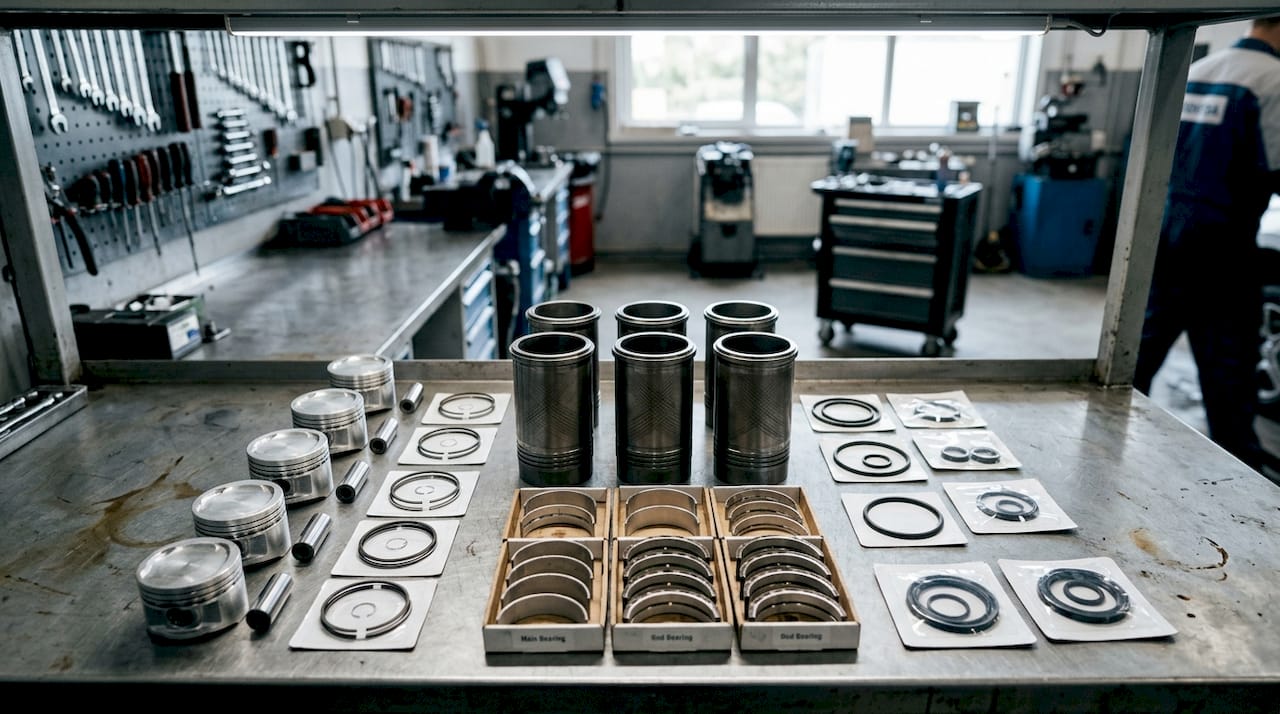

The core parts found in most kits are:
- Pistons: Cast or forged to OEM specifications, pistons form the primary compression surface. Worn pistons cause blow-by and power loss.
- Piston rings: Compression rings and oil control rings seal combustion gases and regulate oil film on the cylinder wall. Ring wear is one of the first signs of a tired engine.
- Cylinder liners: Also called sleeves, liners are the replaceable bore surface that pistons travel through. Most heavy-duty diesel engines use wet liners, which are easier to replace without full machine work.
- Wrist pins: These connect the piston to the connecting rod. They are included in most kits because they wear in tandem with the piston and liner.
- Main bearings: Main and rod bearings support the crankshaft and connecting rods, restoring proper running clearances after wear. Without fresh bearings, a rebuilt top end will still knock under load.
- Rod bearings: These sit between the connecting rod and the crankshaft journal. They are always replaced alongside main bearings to maintain consistent clearances throughout the rotating assembly.
- Head gasket set: The head gasket seals combustion pressure between the block and cylinder head. Most kits include a full upper gasket set covering the head, intake, exhaust, and valve cover.
- Valve stem seals: These prevent oil from being drawn into the combustion chamber past the valve guides. Worn valve stem seals cause blue smoke at startup.
- O-rings and miscellaneous seals: Coolant passage O-rings, liner seals, and injector sleeve seals round out the sealing package.
Pro Tip: Always verify that the kit you order lists the liner seal O-rings separately. Some budget kits omit them, and a leaking liner seal will contaminate your oil within the first few hundred miles.
Kit contents vary by engine model and manufacturer. A typical in-frame kit includes OEM-spec pistons, cylinder liners, wrist pins, piston rings, crankshaft bearings, and connecting rod bearings. That list covers the parts accessible without pulling the engine from the chassis.

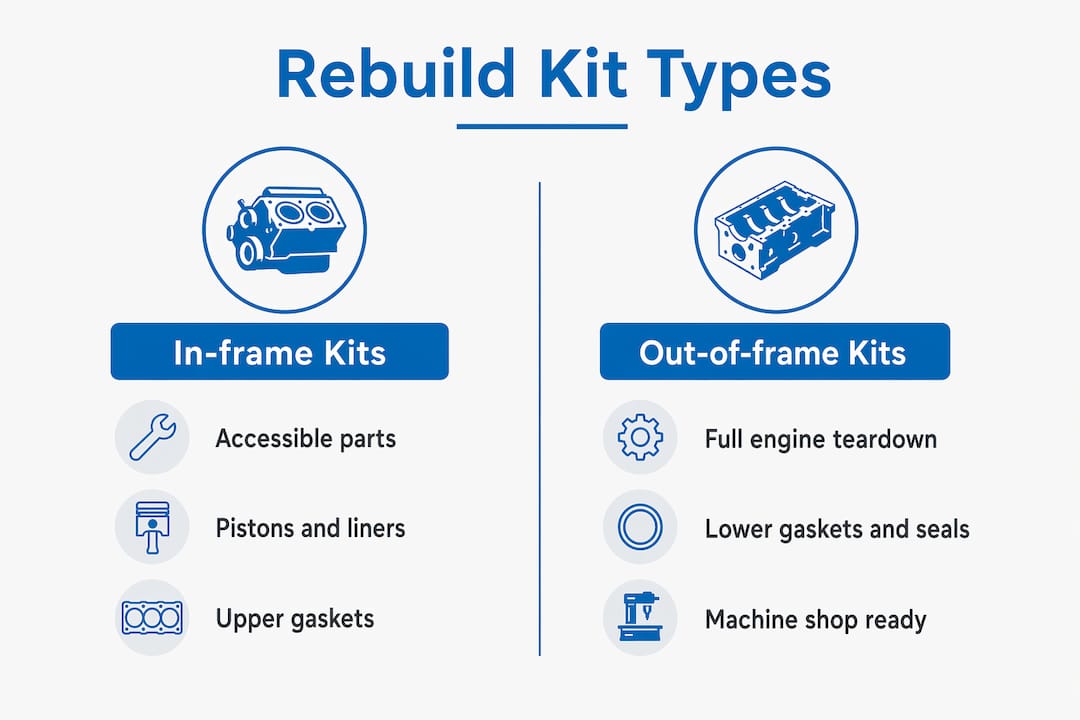

How do in-frame and out-of-frame rebuild kits differ?
The distinction between in-frame and out-of-frame kits is not just about part count. It reflects the scope of the repair and how much of the engine you can physically access.
In-frame rebuild kits
An in-frame rebuild is performed with the engine still in the truck. The cylinder head comes off, the pistons and liners drop out from below, and the bearings are replaced with the crankshaft still in the block. This approach works well when the crankshaft and block are in acceptable condition and the wear is concentrated in the upper end.
In-frame kits focus on the components you can reach without removing the engine. They typically include pistons, liners, rings, wrist pins, main bearings, rod bearings, and an upper gasket set. They do not include front or rear crankshaft seals, because those require engine removal to access.
Out-of-frame rebuild kits
An out-of-frame rebuild means the engine comes out of the chassis completely. With the engine on a stand, every surface is accessible, including the front and rear crankshaft seals, camshaft bearings, and lower block gaskets. Out-of-frame kits include expanded gasket and seal coverage to match that access level.
The table below shows the key differences in kit contents:
| Component | In-frame kit | Out-of-frame kit |
|---|---|---|
| Pistons, liners, rings | Included | Included |
| Main and rod bearings | Included | Included |
| Upper gasket set | Included | Included |
| Front/rear crankshaft seals | Not included | Included |
| Lower gasket set | Partial | Full |
| Camshaft bearings | Not included | Included |
| Timing components | Not included | Often included |
| Oil/water pump parts | Not included | Sometimes included |
Out-of-frame kits commonly include a lower gasket set, seals, O-rings, and other parts required for full teardown and reassembly. Choosing an in-frame kit for a full engine removal means you will be ordering additional seals after the engine is already on the stand, which adds cost and delays the job.
Pro Tip: If the crankshaft needs grinding or the block needs line boring, always choose an out-of-frame kit. The machine work requires full disassembly, and you need every seal in hand before you start.
What additional parts are in full overhaul or master rebuild kits?
Master rebuild kits go beyond the standard in-frame and out-of-frame contents. They are designed for complete engine overhauls where every wear component gets replaced in a single purchase.
Full overhaul kits may include the following additional components:
- Camshaft bearings: These support the camshaft in the block. They wear slowly but must be replaced when the engine is fully disassembled.
- Timing gears and chains: Worn timing components cause valve timing drift, which reduces power and fuel efficiency. Full kits for high-mileage engines often include these.
- Oil pump components: The oil pump maintains pressure throughout the lubrication system. Some master kits include a new pump or pump rebuild parts.
- Water pump components: Coolant flow is critical in a diesel. Some overhaul kits include water pump seals or a complete pump.
- Valve train components: Pushrods, rocker arms, and lifters can be included in master kits for engines with significant valve train wear.
- Injector sleeves and cups: On engines like the Cummins ISX or Detroit DD15, injector sleeves are a common failure point and are sometimes bundled into full overhaul kits.
Heavy-duty rebuild kits for platforms like Caterpillar, Cummins, and Detroit Diesel include components engineered for high-demand industries including construction, mining, and transportation. These kits are built to handle the thermal and mechanical stress that standard automotive kits cannot match.
Performance rebuild kits exist as a separate category. They use higher-compression pistons, thicker rings, or upgraded bearing materials for applications where the engine will be pushed beyond stock output. Most commercial truck operators do not need performance kits. Standard OEM-spec kits restore the engine to factory ratings, which is the correct target for a work truck.
How do rebuild kits restore engine performance and reliability?
Replacing parts together is the core principle behind a rebuild kit. Coordinated replacement of pistons, rings, bearings, and gaskets restores compression and sealing integrity in a way that isolated part changes cannot achieve.
Here is why that matters in practice:
- Compression restoration: New rings on a worn liner will not seal properly. New liners with new rings create the correct bore geometry and surface finish for full ring seating.
- Blow-by prevention: Blow-by occurs when combustion gases pass the rings into the crankcase. It pressurizes the oil system and accelerates wear. Replacing the full ring and liner set eliminates this.
- Bearing clearance accuracy: Rebuild kits are engineered around OEM tolerances, typically ±0.02 mm, to keep all moving parts within spec after installation. Mixing old and new bearings creates uneven clearances that cause premature failure.
- Oil leak prevention: Fresh gaskets and seals eliminate the weep points that develop as original seals harden and shrink over time.
- Coolant integrity: New liner O-rings and head gaskets prevent coolant from migrating into the oil, which is one of the most destructive failure modes in a diesel engine.
Isolated part replacement is a short-term fix. Replacing only the head gasket on an engine with worn rings will result in another teardown within a fraction of the original service interval. A full kit addresses all wear surfaces at once, which is why professional rebuild shops rarely replace single components during a major overhaul.
Key Takeaways
A diesel engine rebuild kit restores engine performance by replacing all critical wear components together, including pistons, liners, rings, bearings, and seals, in a single coordinated overhaul.
| Point | Details |
|---|---|
| Core kit contents | Every kit includes pistons, liners, rings, main bearings, rod bearings, and a gasket set. |
| In-frame vs. out-of-frame | Out-of-frame kits add crankshaft seals, camshaft bearings, and lower gaskets not found in in-frame kits. |
| Master kit extras | Full overhaul kits may include timing gears, oil pump parts, water pump components, and valve train parts. |
| OEM tolerances matter | Kits built to ±0.02 mm OEM specs keep clearances correct and prevent premature wear after rebuild. |
| Replace parts together | Coordinated replacement of rings, liners, and bearings restores compression and prevents blow-by. |
What I've learned from watching technicians choose the wrong kit
The most expensive mistake I see in diesel rebuilds is not a bad part. It is the wrong kit scope. A technician pulls an engine for a full teardown, orders an in-frame kit because it was cheaper, and then spends two days waiting on crankshaft seals that should have been in the box from the start. That delay costs more in labor than the price difference between kit types ever would have.
The second mistake is skipping the inspection before ordering. A rebuild kit assumes the block and crankshaft are within serviceable limits. If the crank journals are undersize, you need undersized bearings, not standard ones. The kit does not fix machine work problems. Always measure before you order.
Buying from a supplier who knows these engines matters more than most technicians admit. Nationwideheavytruckparts carries kits for the major commercial diesel platforms, and their team can confirm fitment before the part ships. That conversation takes five minutes and can prevent a week of delays.
The last thing I will say is this: do not mix kit brands mid-rebuild. If the pistons come from one manufacturer and the rings from another, the ring gap and groove tolerances may not align. Buy the kit as a unit and install it as a unit.
— Carl
Sourcing diesel rebuild kits for commercial trucks
Nationwideheavytruckparts supplies rebuild kits and engine components for the major commercial diesel platforms used in American trucking.
Their inventory covers engines from CAT, Cummins, Detroit Diesel, International, and Mack, with same-day shipping on in-stock parts. Every part goes through inspection before it ships, and a standard warranty backs each sale. Buying a complete kit from a single source keeps your part numbers consistent and your rebuild on schedule. Visit Nationwideheavytruckparts to check current inventory and confirm the right kit for your engine.
FAQ
What is the difference between an in-frame and out-of-frame rebuild kit?
An in-frame kit covers components accessible without removing the engine, such as pistons, liners, rings, and bearings. An out-of-frame kit adds front and rear crankshaft seals, camshaft bearings, and a full lower gasket set for complete engine disassembly.
Do diesel rebuild kits include gaskets and seals?
Yes. All standard diesel rebuild kits include at least an upper gasket set with a head gasket, valve cover gasket, and intake and exhaust gaskets. Out-of-frame kits add a lower gasket set and crankshaft seals.
Can I use a rebuild kit without machining the block?
A rebuild kit assumes the block, crankshaft, and cylinder bores are within OEM tolerances. If the bores are worn beyond spec or the crank journals are undersize, machine work is required before the kit parts will seal and fit correctly.
What engines do heavy-duty rebuild kits cover?
Heavy-duty rebuild kits are available for major commercial diesel platforms including Caterpillar, Cummins, Detroit Diesel, International, Mack, and Paccar engines. Kit contents are specific to each engine family and model year.
Why should I replace all kit components at once instead of just worn parts?
Replacing components together restores the correct clearances and sealing geometry throughout the engine. Mixing new and worn parts creates uneven tolerances that lead to premature failure, often requiring a second teardown within a short service interval.
